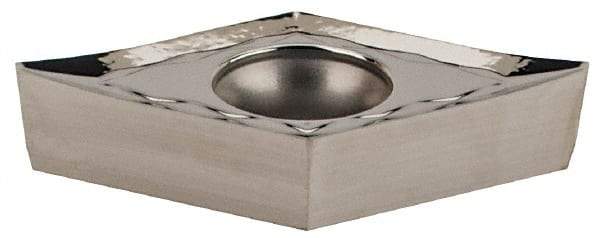

Iscar - DCGT3-1 AS Grade IC20 Carbide Turning Insert - Uncoated, 55° Diamond, 3/8" Inscr Circle, 5/32" Thick, 1/64" Corner Radius
Item #: 52699105
Brand: Iscar
Model #: 5540001
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DCGT |
| Insert Size | 3-1 |
| Material | Carbide |
| Length (mm) | 11.60 |
| Length (Decimal Inch) | 0.4567 |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Material Grade | C2/C3 |
| Chip Breaker | AS |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Relief Angle | 7 |
| Primary Workpiece Material | N; K; M |
| Included Angle | 55 |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Insert Holding Method | Screw |
| Shape | Diamond |
