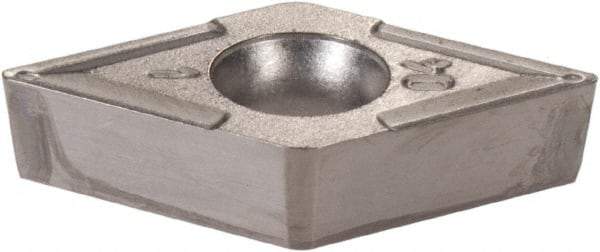

Iscar - DCGT3-1 Grade IC30N Cermet Turning Insert - Uncoated, 55° Diamond, 3/8" Inscr Circle, 5/32" Thick, 1/64" Corner Radius
Item #: 52699097
Brand: Iscar
Model #: 5503027
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | DCGT |
| Insert Size | 3-1 |
| Material | Cermet |
| Length (mm) | 11.61 |
| Length (Decimal Inch) | 0.4570 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1560 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Manufacturer's Grade | IC30N |
| Coating | Uncoated |
| Hole Diameter (mm) | 4.39 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| ISO Number | DCGT 3-1 |
| Relief Angle | 7 |
| Manufacturers Catalog Number | DCGT 3-1 |
| Included Angle | 55 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 2.49 |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Insert Holding Method | Screw |
| Multi Use Application | Boring |
| MultiUseTool | Yes |
| Shape | Diamond |
