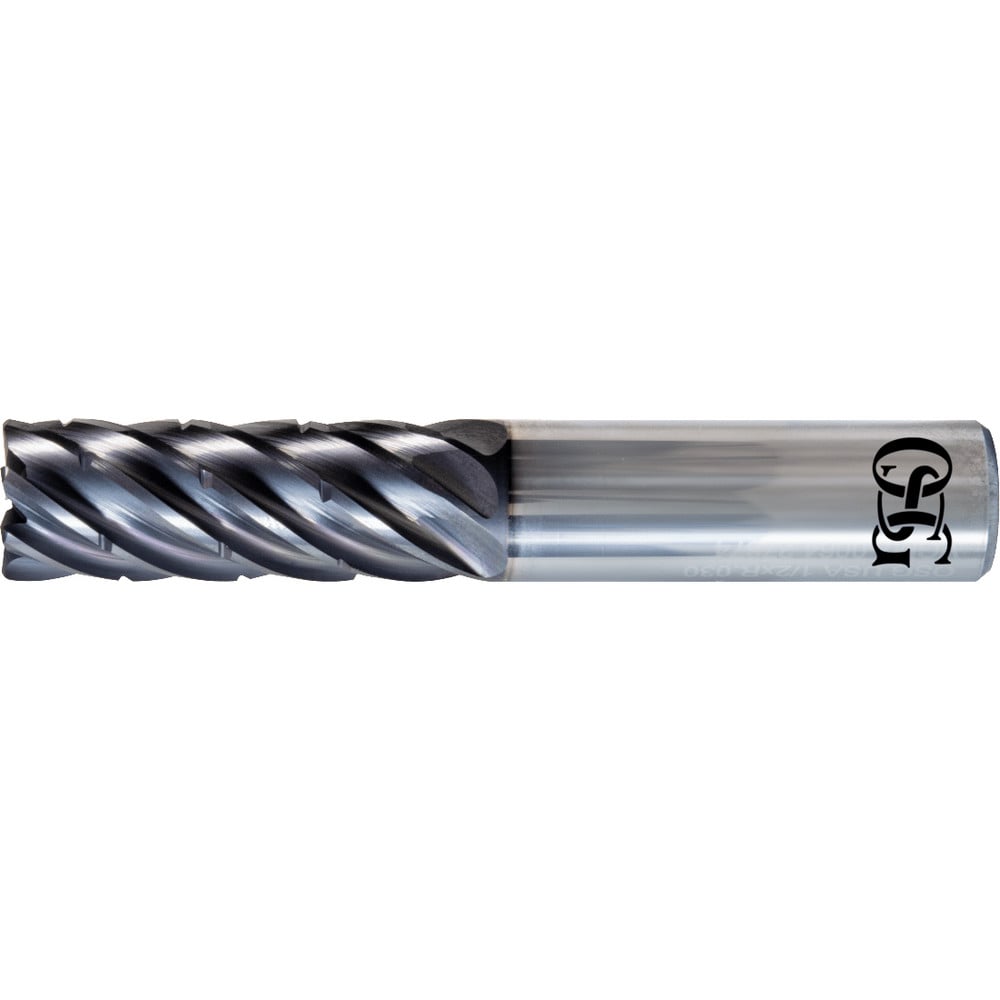

High Performance Variable Geometry Nicked End Mills
Item #: 41197013
Brand: OSG
Model #: VGM5-2008
Product Specifications
| Mill Diameter (Inch) | 1/8 |
| Mill Diameter (Decimal Inch) | 0.1250 |
| Number Of Flutes | 5 |
| Length of Cut (Inch) | 3/8 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | EXO |
| Overall Length (Inch) | 1-1/2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0100 |
| Variable Index | Yes |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Overall Length (Decimal Inch) | 1.5000 |
| Chipbreaker | Yes |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3750 |
| Length Type | Regular |
| Flute Type | Chipbreaker |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Diameter (Inch) | 1/8 |
| Mill Diameter Tolerance | +0 / -0.0015 |
| Primary Workpiece Material | Alloy Steel; Stainless Steel; Cast Iron; Carbon Steel; Titanium; Die Steel; Nickel Alloy; Hardened Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; S; H; K; M |
| Series | VGM5-NIK |
| Material Application | Alloy Steel; Stainless Steel; Cast Iron; Carbon Steel; Titanium; Die Steel; Nickel Alloy; Hardened Steel |
