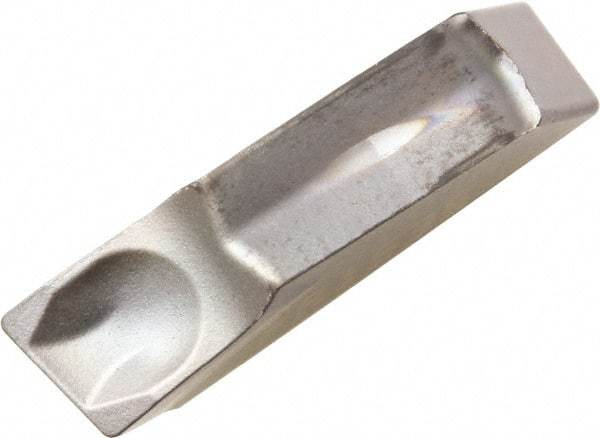

Kyocera - TK S KW10 Grade, 0.122" Cutting Width, Carbide Cutoff Insert - 8° Right Hand Lead Angle, 0.0098" Cnr Rad
Item #: 52560489
Brand: Kyocera
Model #: 8802989
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | TK |
| Insert Size | 3 |
| Lead Angle Direction | Right Hand |
| Lead Angle | 8 |
| Cutting Width (mm) | 3.10 |
| Cutting Width (Decimal Inch) | 0.1220 |
| Manufacturer's Grade | KW10 |
| Series | TK |
| Chipbreaker | S |
| Full Radius | No |
| Multi-Use Application | Cut-Off |
| Corner Radius (Decimal Inch) | 0.009843 |
| Corner Radius (mm) | 0.25 |
| Insert Hand | Right Hand |
| Insert Holding Method | Clamp |
| Width Tolerance | 0.05 (mm) |
| Manufacturers Catalog Number | TKR3 |
