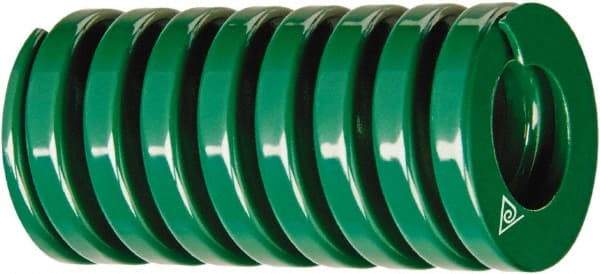

Associated Spring Raymond - 25mm Hole Diam, 12.5mm Rod Diam, 2-1/2" Free Length, Green Die Spring - 280 Lb Max Deflection, 1.374" Max Deflection, Light Duty, Chromium Alloy Steel
Item #: 52383296
Brand: Associated Spring Raymond
Model #: 303-510-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (mm) | 25.00 |
| Rod Diameter (mm) | 12.50 |
| Free Length (Inch) | 2-1/2 |
| Load Type | Light-Duty |
| Color | Green |
| Maximum Deflection Load (N) | 1245.50 |
| Maximum Deflection Load (Lb.) | 280.00 |
| Maximum Deflection (mm) | 34.90 |
| Maximum Deflection (Decimal Inch) | 1.3740 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
