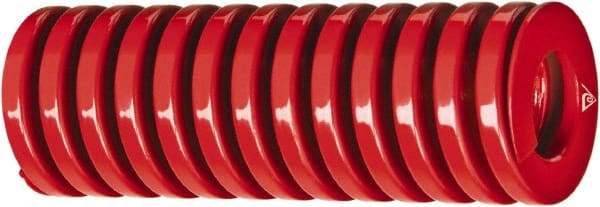

Associated Spring Raymond - 25mm Hole Diam, 12.5mm Rod Diam, 2" Free Length, Red Die Spring - 612 Lb Max Deflection, 0.6575" Max Deflection, Heavy Duty, Chromium Alloy Steel
Item #: 52380961
Brand: Associated Spring Raymond
Model #: 305-508-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (mm) | 25.00 |
| Rod Diameter (mm) | 12.50 |
| Free Length (Inch) | 2 |
| Load Type | Heavy-Duty |
| Color | Red |
| Maximum Deflection Load (N) | 2722.31 |
| Maximum Deflection Load (Lb.) | 612.00 |
| Maximum Deflection (mm) | 16.70 |
| Maximum Deflection (Decimal Inch) | 0.6575 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
