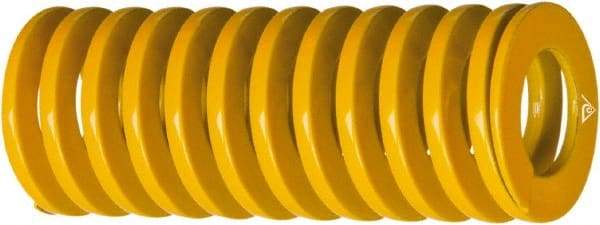

Associated Spring Raymond - 25mm Hole Diam, 12.5mm Rod Diam, 5" Free Length, Yellow Die Spring - 724 Lb Max Deflection, 1.6614" Max Deflection, Extra Heavy Duty, Chromium Alloy Steel
Item #: 52380243
Brand: Associated Spring Raymond
Model #: 306-520-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (mm) | 25.00 |
| Rod Diameter (mm) | 12.50 |
| Free Length (mm) | 127.00 |
| Free Length (Inch) | 5 |
| Load Type | Extra Heavy-Duty |
| Color | Yellow |
| Maximum Deflection Load (N) | 3220.51 |
| Maximum Deflection Load (Lb.) | 724.00 |
| Maximum Deflection (mm) | 42.20 |
| Maximum Deflection (Decimal Inch) | 1.6614 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
