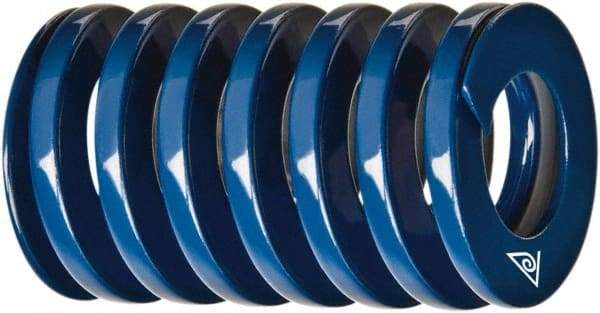

Associated Spring Raymond - 25mm Hole Diam, 12.5mm Rod Diam, 4" Free Length, Blue Die Spring - 346 Lb Max Deflection, 1.6969" Max Deflection, Medium Duty, Chromium Alloy Steel
Item #: 52378411
Brand: Associated Spring Raymond
Model #: 304-516-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (mm) | 25.00 |
| Rod Diameter (mm) | 12.50 |
| Free Length (Inch) | 4 |
| Load Type | Medium-Duty |
| Color | Blue |
| Maximum Deflection Load (N) | 1539.08 |
| Maximum Deflection Load (Lb.) | 346.00 |
| Maximum Deflection (mm) | 43.10 |
| Maximum Deflection (Decimal Inch) | 1.6969 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
