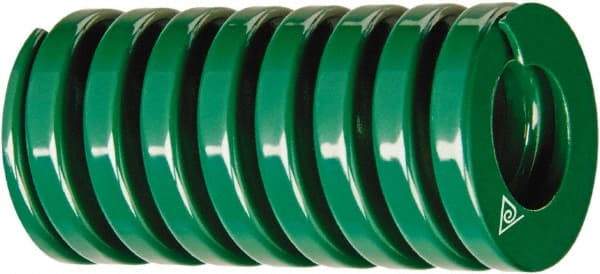

Associated Spring Raymond - 3/8" Hole Diam, 3/16" Rod Diam, 1-3/4" Free Length, Green Die Spring - 35 Lb Max Deflection, 0.9488" Max Deflection, Light Duty, Chromium Alloy Steel
Item #: 52377447
Brand: Associated Spring Raymond
Model #: 303-107-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 3/8 |
| Rod Diameter (Inch) | 3/16 |
| Free Length (Inch) | 1-3/4 |
| Load Type | Light-Duty |
| Color | Green |
| Maximum Deflection Load (N) | 155.69 |
| Maximum Deflection Load (Lb.) | 35.00 |
| Maximum Deflection (mm) | 24.10 |
| Maximum Deflection (Decimal Inch) | 0.9488 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
