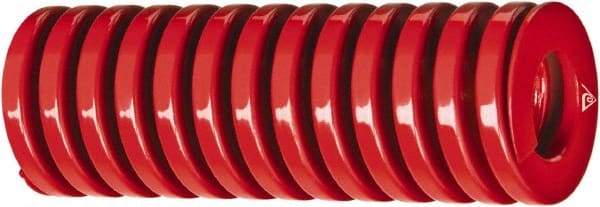

Associated Spring Raymond - 25mm Hole Diam, 12.5mm Rod Diam, 1-1/2" Free Length, Red Die Spring - 562 Lb Max Deflection, 0.4488" Max Deflection, Heavy Duty, Chromium Alloy Steel
Item #: 52375185
Brand: Associated Spring Raymond
Model #: 305-506-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (mm) | 25.00 |
| Rod Diameter (mm) | 12.50 |
| Free Length (Inch) | 1-1/2 |
| Load Type | Heavy-Duty |
| Color | Red |
| Maximum Deflection Load (N) | 2499.90 |
| Maximum Deflection Load (Lb.) | 562.00 |
| Maximum Deflection (mm) | 11.40 |
| Maximum Deflection (Decimal Inch) | 0.4488 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
