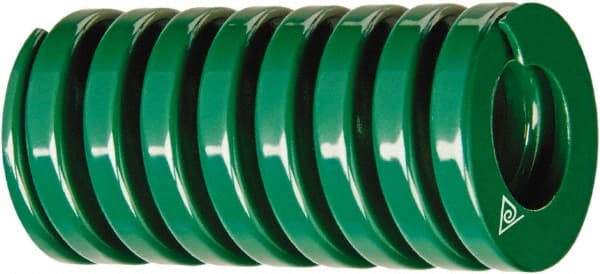

Associated Spring Raymond - 25mm Hole Diam, 12.5mm Rod Diam, 8" Free Length, Green Die Spring - 263 Lb Max Deflection, 4.3661" Max Deflection, Light Duty, Chromium Alloy Steel
Item #: 52373248
Brand: Associated Spring Raymond
Model #: 303-532-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (mm) | 25.00 |
| Rod Diameter (mm) | 12.50 |
| Free Length (Inch) | 8 |
| Load Type | Light-Duty |
| Color | Green |
| Maximum Deflection Load (N) | 1169.88 |
| Maximum Deflection Load (Lb.) | 263.00 |
| Maximum Deflection (mm) | 110.90 |
| Maximum Deflection (Decimal Inch) | 4.3661 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
