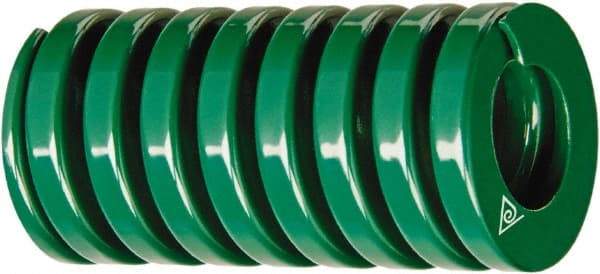

Associated Spring Raymond - 25mm Hole Diam, 12.5mm Rod Diam, 5" Free Length, Green Die Spring - 254 Lb Max Deflection, 2.6693" Max Deflection, Light Duty, Chromium Alloy Steel
Item #: 52371788
Brand: Associated Spring Raymond
Model #: 303-520-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (mm) | 25.00 |
| Rod Diameter (mm) | 12.50 |
| Free Length (mm) | 127.00 |
| Free Length (Inch) | 5 |
| Load Type | Light-Duty |
| Color | Green |
| Maximum Deflection Load (N) | 1129.85 |
| Maximum Deflection Load (Lb.) | 254.00 |
| Maximum Deflection (mm) | 67.80 |
| Maximum Deflection (Decimal Inch) | 2.6693 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
