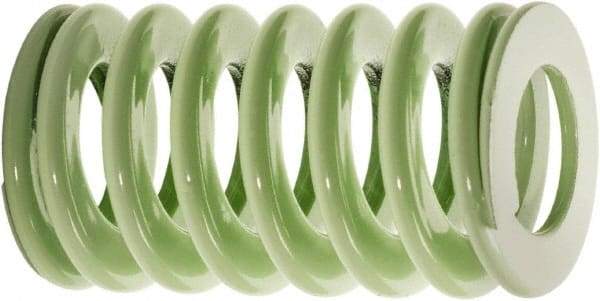

Associated Spring Raymond - 25mm Hole Diam, 12.5mm Rod Diam, 2-1/2" Free Length, Light Green Die Spring - 199 Lb Max Deflection, 1.6142" Max Deflection, Ultra Light Duty, Chromium Alloy Steel
Item #: 52371549
Brand: Associated Spring Raymond
Model #: 302-510-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (mm) | 25.00 |
| Rod Diameter (mm) | 12.50 |
| Free Length (Inch) | 2-1/2 |
| Load Type | Ultra Light-Duty |
| Color | Light Green |
| Maximum Deflection Load (N) | 885.20 |
| Maximum Deflection Load (Lb.) | 199.00 |
| Maximum Deflection (mm) | 41.00 |
| Maximum Deflection (Decimal Inch) | 1.6142 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
