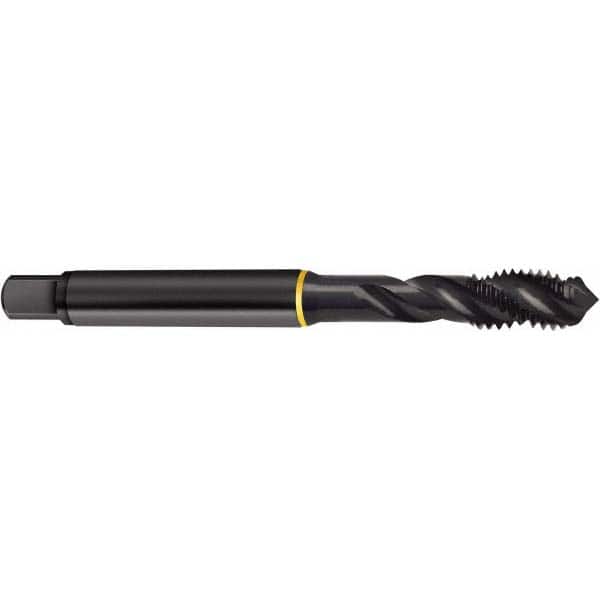

Spiral Flute Tap: 3/4-10, UNC, 3 Flute, Modified Bottoming, 2B & 3B Class of Fit, Cobalt, Oxide Finish 0.984″ Thread Length, 4.252″ OAL, Right Hand Flute, Right Hand Thread, H3, Series 4407
Item #: 52361755
Brand: Guhring
Model #: 9044073190500
Product Specifications
| Material | Cobalt |
| Coating/Finish | Oxide |
| Thread Size (Inch - 0 Decimals) | 3/4-10 |
| Thread Standard | UNC |
| Thread Limit | H3 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.9840 |
| Overall Length (Decimal Inch) | 4.2520 |
| Chamfer | Modified Bottoming |
| Flute Direction | Right Hand |
| Helix Angle | 40 |
| Application | Blind Hole Threading |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.5900 |
| Tapping Depth (Decimal Inch) | 0.6563 |
| Square Size (Decimal Inch) | 0.4420 |
| Flute Style | Fast |
| Material Application | Ductile Iron; Malleable Cast Iron; Alloy Steel; Stainless Steel; Case Hardened Steel; Cast Iron; Structural Steel; Tool Steel; Aluminum Alloy; Alloy Tool Steel; Free Cutting Steel; Heat Treated Steel |
| Series | 4407 |
| Coolant Through | No |
| Teeth per Inch | 10 |
| Number Of Flutes | 3 |
| Class Of Fit | 2B; 3B |
