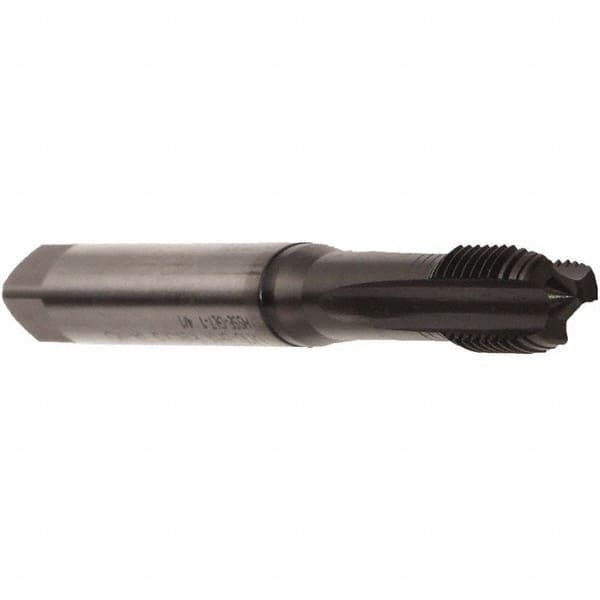

Emuge - M10x1.50 Metric Coarse 6HX 3 Flute GLT-1 Finish Cobalt Straight Flute Machine Tap - Modified Bottoming, Right Hand Thread, 100mm OAL, 22mm Thread Length, Oversize
Item #: 52299963
Brand: Emuge
Model #: B010J601.0100
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming is similar to bottoming, but the chamfer is longer and has more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
GLT-1 is a multi-layered coating that offers a hard surface coating and an anti-friction layer for fast and efficient chip removal. It is heat resistant, wear resistant and prevents sliding.GLT-1 is a proprietary coating exclusive to Emuge.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (mm) | M10x1.50 |
| Class of Fit | 6HX |
| Number of Flutes | 3 |
| Chamfer | Modified Bottoming |
| Material | Cobalt |
| Finish/Coating | GLT-1 |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | Metric Coarse |
| Overall Length (Decimal Inch) | 3.93700 |
| Overall Length (mm) | 100.00 |
| Oversize | No |
| Series/List | Rekord A |
| Thread Length (Decimal Inch) | 0.8661 |
| Thread Length (mm) | 22.00 |
| Neck Length (mm) | 39.00 |
| Neck Length (Decimal Inch) | 1.5354 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Shank Diameter (mm) | 10.00 |
| Shank Length (Decimal Inch) | 2.40 |
| Shank Length (mm) | 61 |
| Square Size (Decimal Inch) | 0.3150 |
| Square Size (mm) | 8.00 |
| Material Application | Magnesium Alloys |
