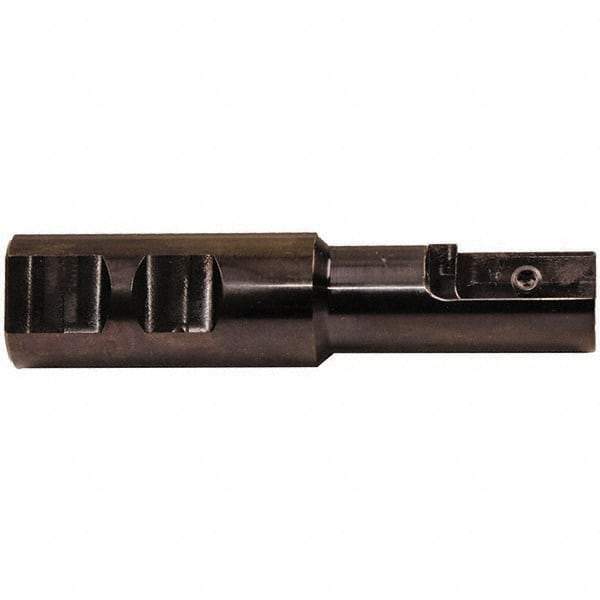

Emuge - 16mm Cut Diam, 30mm Max Hole Depth, 16mm Shank Diam, Internal Indexable Thread Mill - Insert Style GF6031, 15mm Insert Size, 1 Insert, Toolholder Style GZ30, 78mm OAL
Item #: 52285046
Brand: Emuge
Model #: GZ301110
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 16.00 |
| Cutting Diameter (Decimal Inch) | 0.6299 |
| Maximum Hole Depth (mm) | 30.00 |
| Maximum Hole Depth (Decimal Inch) | 1.1811 |
| Insert Style | GF6031 |
| Insert Size (mm) | 15.00 |
| Insert Size (Decimal Inch) | 0.5906 |
| Toolholder Style | GZ30 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 78.00 |
| Overall Length (Decimal Inch) | 3.0709 |
| Number of Threading Inserts | 1 |
| Thread Type | Internal |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Insert Holding Method | Screw |
| Neck Diameter (mm) | 13.00 |
| Neck Diameter (Decimal Inch) | 0.5118 |
