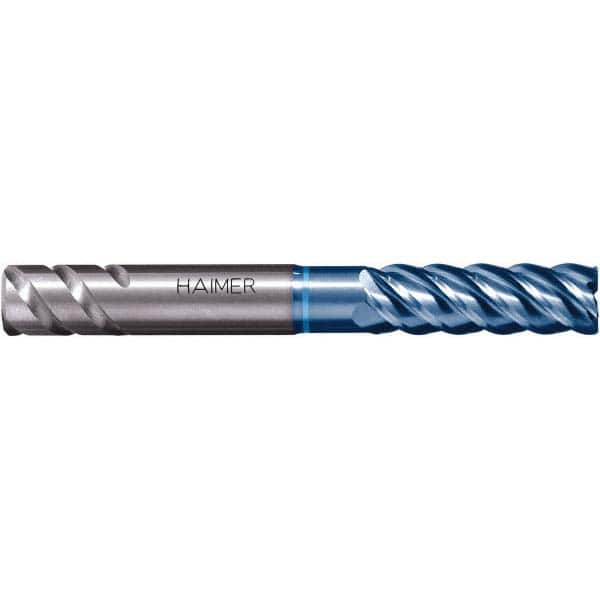

Corner Chamfer End Mill: 0.7874″ Dia, 2.3622″ LOC, 5 Flute, 0.0236″ Chamfer Width, Solid Carbide 133 mm OAL, 20 mm Shank Dia, AlTiN Coated
Item #: 52175510
Brand: HAIMER
Model #: F1005LLL2000CAA
Product Specifications
| Mill Diameter (Decimal Inch) | 0.7874 |
| Chamfer Width (mm) | 0.60 |
| Chamfer Width (Decimal Inch) | 0.0236 |
| Mill Diameter (mm) | 20.00 |
| Chamfer Angle | 45 |
| Length of Cut (mm) | 60.00 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Extended Reach | Yes |
| End Type | Corner Chamfer |
| Variable Index | Yes |
| Variable Helix | Yes |
| Shank Diameter (mm) | 20.00 |
| Neck Diameter (mm) | 19.00 |
| Neck Diameter (Decimal Inch) | 0.7480 |
| Reach Length (Decimal Inch) | 3.1496 |
| Reach Length (mm) | 80.00 |
| Overall Length (mm) | 133.00 |
| Minimum Helix Angle | 46.00 |
| Maximum Helix Angle | 47.00 |
| Overall Length Tolerance | +0.05 to -0.05 mm |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | Submicron |
| TIR Maximum (Decimal Inch) | 0.0002 |
| Single Or Double End | Single |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 2.3622 |
