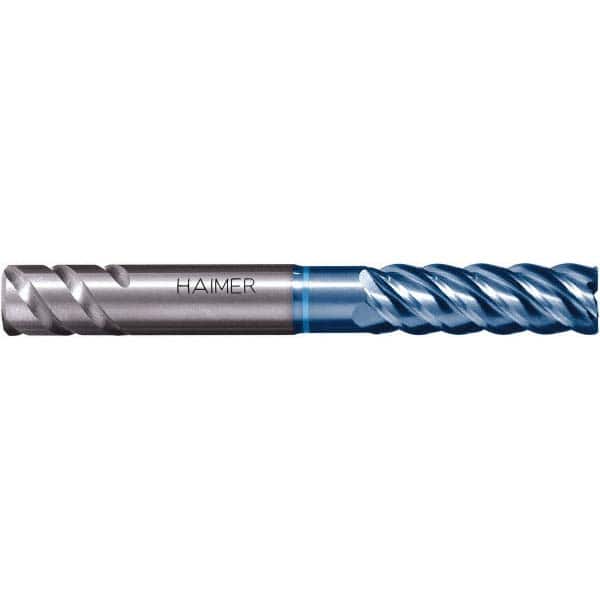

Corner Chamfer End Mill: 1″ Dia, 3″ LOC, 5 Flute, 0.032″ Chamfer Width, Solid Carbide 6″ OAL, 1″ Shank Dia, AlTiN Coated
Item #: 52175221
Brand: HAIMER
Model #: F1005LLL1ZCAA
Product Specifications
| Mill Diameter (Decimal Inch) | 1.0000 |
| Chamfer Width (Decimal Inch) | 0.0320 |
| Mill Diameter (Inch) | 1 |
| Chamfer Angle | 45 |
| Length of Cut (Inch) | 3 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Extended Reach | Yes |
| End Type | Corner Chamfer |
| Variable Index | Yes |
| Variable Helix | Yes |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Neck Diameter (Decimal Inch) | 0.9600 |
| Reach Length (Decimal Inch) | 4.0000 |
| Reach Length (Inch) | 4 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Minimum Helix Angle | 46.00 |
| Maximum Helix Angle | 47.00 |
| Overall Length Tolerance | +0.002 to -0.002 in |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | Submicron |
| TIR Maximum (Decimal Inch) | 0.0002 |
| Single Or Double End | Single |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 3.0000 |
