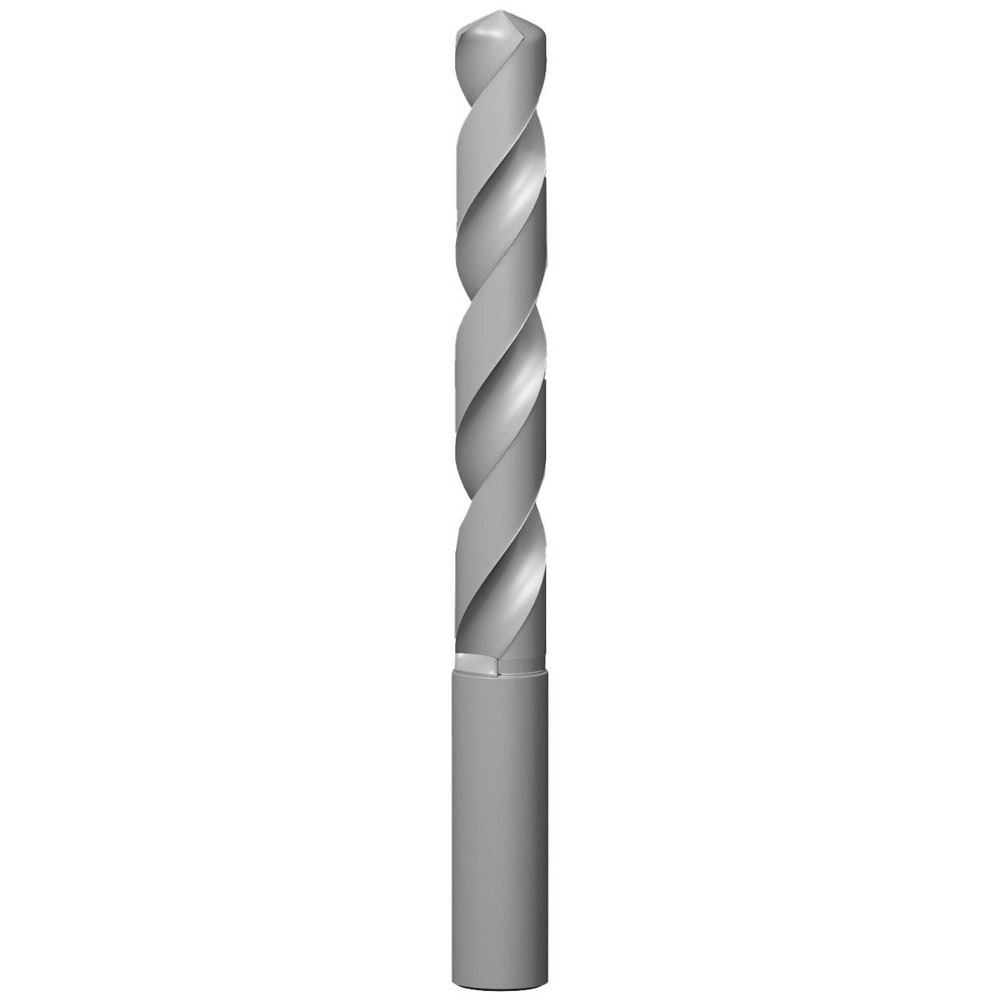

Screw Machine Length Drill Bit: 11/64" Dia, 135 deg Point, Solid Carbide
Item #: 45614252
Brand: Sumitomo
Model #: U101036
Product Specifications
| Drill Bit Size (Inch) | 11/64 |
| Drill Bit Size (Decimal Inch) | 0.1719 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Multi-layer |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 135 |
| Coolant Through | Yes |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Cast Iron; Steel |
| Point Type | Web-Thinned |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Overall Length (Decimal Inch) | 3.1496 |
| Series | MDW-HGS |
| Web Configuration | Tapered |
| Proprietary Coating/Finish | DEX |
| Number of Margins | 2 |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 0.7265 |
| Maximum Drilling Depth (mm) | 18.45 |
| Shank Length (Decimal Inch) | 2.0866 |
| Drill Point Length (mm) | 0.90 |
| Drill Point Length (Decimal Inch) | 0.0356 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | h8 |
| Flute Length (Decimal Inch) | 0.9843 |
| Drill Bit Size Range (Decimal Inch) | 0.1500 to 0.2000 |
| UNSPSC Code | 23241635 |
