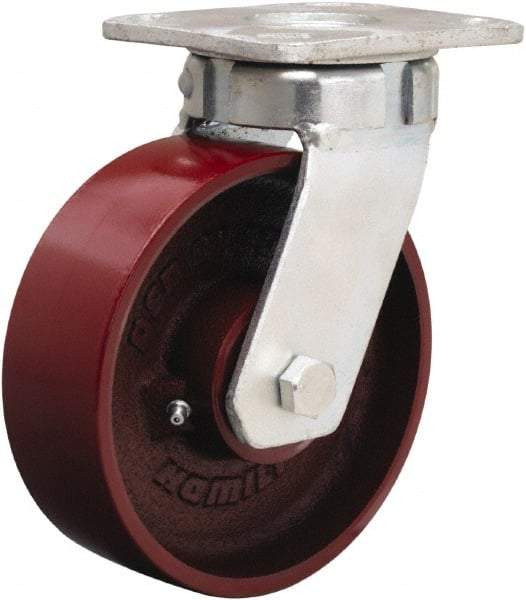

Hamilton - 6" Diam x 2" Wide x 7-1/2" OAH Top Plate Mount Swivel Caster - Cast Iron, 1,200 Lb Capacity, Sealed Precision Ball Bearing, 4 x 4-1/2" Plate
Item #: 52140670
Brand: Hamilton
Model #: S-52K-6MB
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Mount | Top Plate |
| Style | Swivel |
| Wheel Diameter (Inch) | 6 |
| Wheel Width (Inch) | 2 |
| Overall Height (Inch) | 7-1/2 |
| Load Capacity (Lb.) | 1200 |
| Wheel Material Type | Iron |
| Plate Size (Inch) | 4 x 4-1/2 |
| Bearing Type | Sealed Precision Ball Bearing |
| Finish/Coating | Bright Zinc Plated |
| Bolt Hole Spacing | 2-5/8 x 3-5/8 Slotted To 3 x 3 |
| Attaching Bolt Size (Inch) | 3/8 |
| Attaching Bolt Size (Decimal Inch) | 0.3750 |
| Applications | CNC Machined Raceway; High Temp. (320 F); Standard Duty |
| Construction | Mounting Plate & Inner Raceway Is A Weldment Constructed From 1045 Steel |
| Additional Information | Abrasion Resistant; Chemical Resistant; Moisture Resistant; Rolling Ease |
| Wheel Material | Cast Iron |
