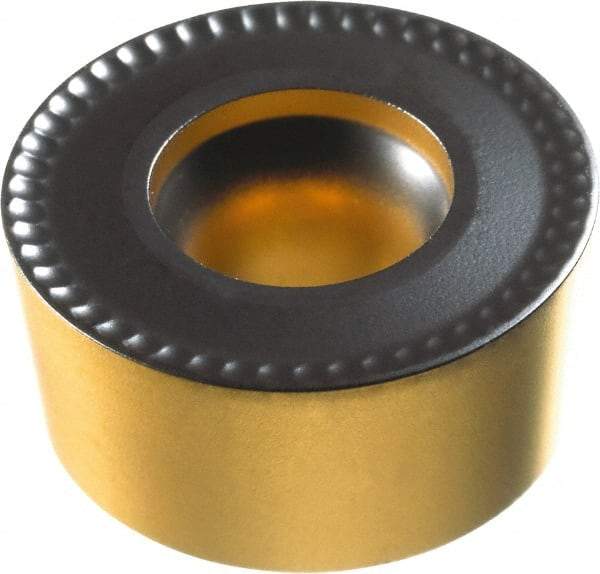

Sandvik Coromant - RCMT64 Grade 4215 Carbide Turning Insert - TiCN/AI2O3/TiN Finish, Round, 3/4" Inscr Circle, 1/4" Thick
Item #: 52087673
Brand: Sandvik Coromant
Model #: 5740743
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMT |
| Insert Size | 64 |
| Material | Carbide |
| Length (mm) | 6.35 |
| Length (Inch) | 1/4 |
| Length (Decimal Inch) | 0.2500 |
| Inscribed Circle (mm) | 19.05 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Manufacturer's Grade | 4215 |
| Coating | TiCN/AI2O3/TiN |
| Insert Length (Decimal Inch) | 0.2500 |
| OverallLength (mm) | 6.35 |
| Overall Length (Decimal Inch) | 0.2500 |
| Hole Diameter (mm) | 6.50 |
| Hole Diameter (Decimal Inch) | 0.2559 |
| ISO Number | RCMT 19 06 00 4215 |
| Relief Angle | 7 |
| Insert Holding Method | Screw |
| Shape | Round |
