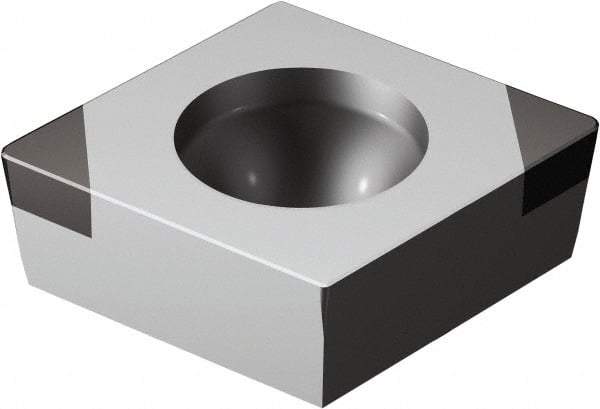

Sandvik Coromant - CCGW21.51 Grade 7025 Carbide Turning Insert - Uncoated, 80° Diamond, 1/4" Inscr Circle, 3/32" Thick, 1/64" Corner Radius
Item #: 52086907
Brand: Sandvik Coromant
Model #: 5781749
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CCGW |
| Insert Size | 21.51 |
| Material | Carbide |
| Length (mm) | 2.80 |
| Length (Decimal Inch) | 0.1102 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Thickness (mm) | 2.38 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | 7025 |
| Coating | Uncoated |
| Insert Length (Decimal Inch) | 0.1102 |
| OverallLength (mm) | 6.45 |
| Overall Length (Decimal Inch) | 0.2539 |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| ISO Number | CCGW060204S01030F 7025 |
| Relief Angle | 7 |
| Included Angle | 80 |
| Insert Holding Method | Screw |
| Shape | Diamond |
