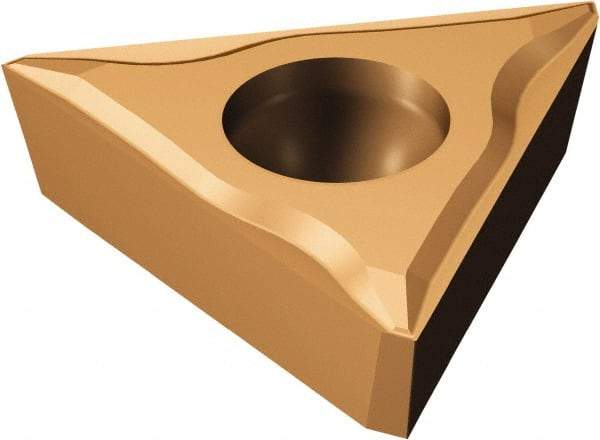

Sandvik Coromant - TCEX1103 F Grade 1125 Carbide Turning Insert - TiAlN/AlCr2O3 Finish, 60° Triangle, 3.362mm Inscr Circle, 1.4mm Thick, 0.1mm Corner Radius
Item #: 52086345
Brand: Sandvik Coromant
Model #: 5752349
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TCEX |
| Insert Size | 1103 |
| Material | Carbide |
| Length (mm) | 5.47 |
| Length (Decimal Inch) | 0.2154 |
| Inscribed Circle (mm) | 3.36 |
| Inscribed Circle (Decimal Inch) | 0.1324 |
| Thickness (Decimal Inch) | 0.0551 |
| Thickness (mm) | 1.40 |
| Corner Radius (mm) | 0.10 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Manufacturer's Grade | 1125 |
| Coating | TiAlN/AlCr2O3 |
| Chip Breaker | F |
| Insert Length (Decimal Inch) | 0.2154 |
| OverallLength (mm) | 5.57 |
| Overall Length (Decimal Inch) | 0.2193 |
| Hole Diameter (mm) | 2.25 |
| Hole Diameter (Decimal Inch) | 0.0886 |
| ISO Number | TCEX 05 01 01L-F 1125 |
| Relief Angle | 7 |
| Included Angle | 60 |
| Insert Holding Method | Screw |
| Shape | Triangle |
