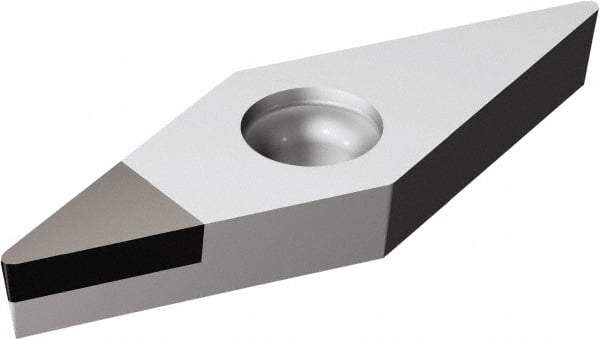

Sandvik Coromant - VCMW333 FP Grade CD10 Carbide Turning Insert - Uncoated, 35° Diamond, 3/8" Inscr Circle, 3/16" Thick, 3/64" Corner Radius
Item #: 52085826
Brand: Sandvik Coromant
Model #: 5755996
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VCMW |
| Insert Size | 333 |
| Material | Carbide |
| Length (mm) | 2.70 |
| Length (Decimal Inch) | 0.1063 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (mm) | 1.1906 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | CD10 |
| Coating | Uncoated |
| Chip Breaker | FP |
| Insert Length (Decimal Inch) | 0.1063 |
| OverallLength (mm) | 16.61 |
| Overall Length (Decimal Inch) | 0.6538 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Number | VCMW160412FP CD10 |
| Relief Angle | 7 |
| Included Angle | 35 |
| Insert Holding Method | Screw |
| Shape | Diamond |
