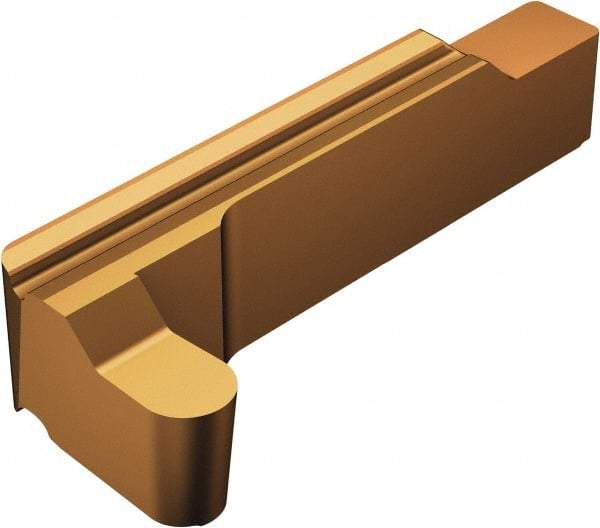

Sandvik Coromant - X1RG123.. RS 3mm Cutting Width Carbide Grooving Insert - 8.99mm Max Depth of Cut, Right Hand, 1.5mm Corner Radius, TiAlN/AlCr2O3 Finish
Item #: 52085065
Brand: Sandvik Coromant
Model #: 5741388
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RG123.. |
| Insert Size | X1 |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (mm) | 8.99 |
| Maximum Depth of Cut (Decimal Inch) | 0.3540 |
| Coating | TiAlN/AlCr2O3 |
| Insert Hand | Right Hand |
| Cutting Height (mm) | 6.05 |
| Cutting Height (Decimal Inch) | 0.2382 |
| Insert Seat Size | L |
| Chipbreaker | RS |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Minimum Corner Radius (Decimal Inch) | 0.0591 |
| Corner Radius (mm) | 1.50 |
| Corner Radius (Decimal Inch) | 0.0591 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 1.2170 |
| Series | CoroCut 1-2 |
| Rake | Positive |
| ISO Number | RG123L1-0300-0015-RS1115 |
| Manufacturers Catalog Number | RG123L1-0300-0015-RS1115 |
| Overall Width (Decimal Inch) | 0.1180 |
| Insert Thickness (Decimal Inch) | 0.2382 |
