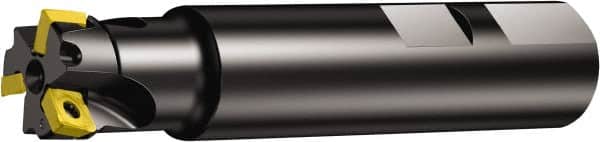

Sandvik Coromant - 3/4" Cut Diam, 5.5mm Max Depth of Cut, 3/4" Shank Diam, 85.09mm OAL, Indexable Square Shoulder End Mill - 490R-08T308 Inserts, Weldon Shank, 90° Lead Angle, Through Coolant, Series CoroMill 490
Item #: 52084159
Brand: Sandvik Coromant
Model #: 5722862
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Cutting Diameter (Inch) | 3/4 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length/Projection (mm) | 85.09 |
| Overall Length/Projection (Decimal Inch) | 3.3500 |
| Lead Angle | 90 |
| Series | CoroMill 490 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 5.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2165 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | CoroMill 490 |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (mm) | 19.05 |
| Minimum Cutting Diameter (Inch) | 3/4 |
| Minimum Cutting Diameter (Decimal Inch) | 0.7500 |
| Head Length (mm) | 25.91 |
| Head Length (Decimal Inch) | 1.0200 |
| Weldon Flat | Yes |
| Insert Compatibility | 490R-08T308 |
| Shank Length (Decimal Inch) | 2.3300 |
| Maximum RPM | 50600 |
| Toolholder Material | Steel |
