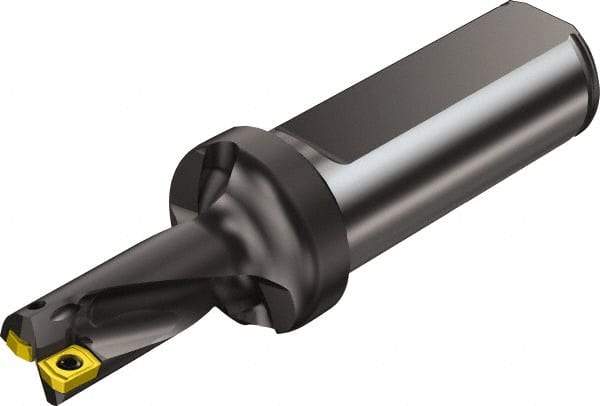

Sandvik Coromant - 37.4mm Max Drill Depth, 2xD, 17mm Diam, Indexable Insert Drill - 2 Inserts, 20mm Shank Diam, Straight Shank
Item #: 52084035
Brand: Sandvik Coromant
Model #: 5765278
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880..L-02 |
| Drill Diameter (mm) | 17.00 |
| Drill Diameter (Decimal Inch) | 0.6690 |
| Maximum Drill Depth (mm) | 37.40 |
| Maximum Drill Depth (Decimal Inch) | 1.4724 |
| Shank Type | Straight |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Insert Size (mm) | 2.6 |
| Insert Size (Decimal Inch) | 0.1024 |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.7165 |
| Maximum Drill Diameter (mm) | 17.00 |
| Overall Length/Projection (mm) | 103.00 |
| Overall Length/Projection (Decimal Inch) | 4.0551 |
| Insert Compatibility (Outside or Peripheral) | 03P |
| Flute Length (mm) | 47.80 |
| Flute Length (Decimal Inch) | 1.8819 |
| Body Length (Decimal Inch) | 1.4961 |
| Body Length (mm) | 38.00 |
| Shank Length (mm) | 50.00 |
| Shank Length (Decimal Inch) | 1.9685 |
| Radius (Decimal Inch) | 0.3346 |
| Series | CoroDrill 880 |
