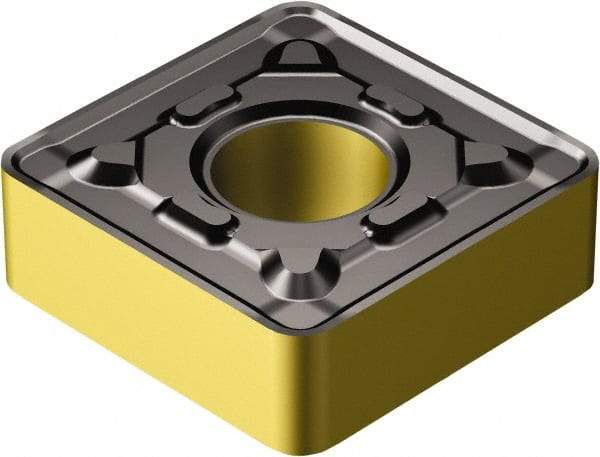

Sandvik Coromant - SNMG646 PR Grade 4325 Carbide Turning Insert - TiCN/AI2O3/TiN Finish, 90° Square, 3/4" Inscr Circle, 1/4" Thick, 3/32" Corner Radius
Item #: 52083706
Brand: Sandvik Coromant
Model #: 6265962
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMG |
| Insert Size | 646 |
| Material | Carbide |
| Length (mm) | 16.65 |
| Length (Decimal Inch) | 0.6555 |
| Inscribed Circle (mm) | 19.05 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Corner Radius (Inch) | 3/32 |
| Corner Radius (mm) | 2.3813 |
| Corner Radius (Decimal Inch) | 0.0938 |
| Manufacturer's Grade | 4325 |
| Coating | TiCN/AI2O3/TiN |
| Chip Breaker | PR |
| Insert Length (Decimal Inch) | 0.6555 |
| OverallLength (mm) | 19.05 |
| Overall Length (Decimal Inch) | 0.7500 |
| Hole Diameter (mm) | 7.93 |
| Hole Diameter (Decimal Inch) | 0.3120 |
| ISO Number | SNMG 19 06 24-PR 4325 |
| Relief Angle | 0 |
| Included Angle | 90 |
| Insert Holding Method | Pin & Clamp |
| Shape | Square |
