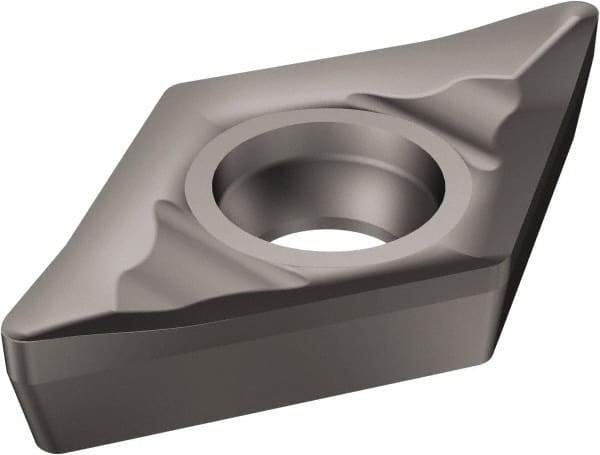

Sandvik Coromant - DCGX21.50 AL Grade H10 Carbide Turning Insert - Uncoated, 55° Diamond, 1/4" Inscr Circle, 3/32" Thick, 0.2mm Corner Radius
Item #: 52083383
Brand: Sandvik Coromant
Model #: 5730513
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DCGX |
| Insert Size | 21.50 |
| Material | Carbide |
| Length (mm) | 7.55 |
| Length (Decimal Inch) | 0.2973 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Thickness (mm) | 2.38 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | H10 |
| Coating | Uncoated |
| Chip Breaker | AL |
| Insert Length (Decimal Inch) | 0.2973 |
| OverallLength (mm) | 7.75 |
| Overall Length (Decimal Inch) | 0.3052 |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| ISO Number | DCGX 07 02 02-AL H10 |
| Relief Angle | 7 |
| Included Angle | 55 |
| Insert Holding Method | Screw |
| Shape | Diamond |
