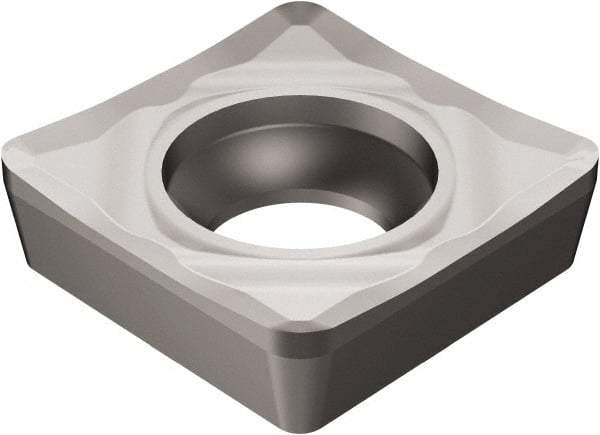

Sandvik Coromant - SCGX32.52 AL Grade H10 Carbide Turning Insert - Uncoated, 90° Square, 3/8" Inscr Circle, 5/32" Thick, 1/32" Corner Radius
Item #: 52082831
Brand: Sandvik Coromant
Model #: 5748962
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SCGX |
| Insert Size | 32.52 |
| Material | Carbide |
| Length (mm) | 8.73 |
| Length (Decimal Inch) | 0.3435 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Thickness (mm) | 3.97 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.7938 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | H10 |
| Coating | Uncoated |
| Chip Breaker | AL |
| Insert Length (Decimal Inch) | 0.3435 |
| OverallLength (mm) | 9.53 |
| Overall Length (Decimal Inch) | 0.3750 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Number | SCGX 09 T3 08-AL H10 |
| Relief Angle | 7 |
| Included Angle | 90 |
| Insert Holding Method | Screw |
| Shape | Square |
