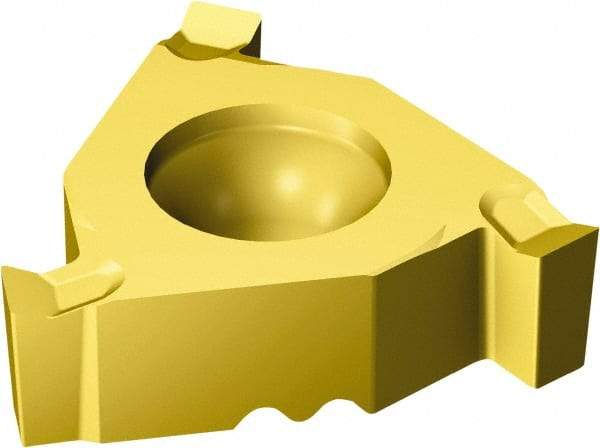

Sandvik Coromant - 0.5254 C Grade 1135, 1/8" Cutting Width Carbide Grooving Insert - 2.2mm Max Depth of Cut, Left Hand, 0.15mm Corner Radius, TiCrAlN/TiN Finish
Item #: 52078839
Brand: Sandvik Coromant
Model #: 5910845
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 254 |
| Insert Size | 0.5 |
| Material | Carbide |
| Cutting Width (mm) | 3.15 |
| Cutting Width (Inch) | 1/8 |
| Cutting Width (Decimal Inch) | 0.1240 |
| Maximum Depth of Cut (mm) | 2.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.0866 |
| Manufacturer's Grade | 1135 |
| Coating | TiCrAlN/TiN |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Cutting Height (mm) | 5.56 |
| Cutting Height (Decimal Inch) | 0.2190 |
| Insert Seat Size | 0.5 |
| Chipbreaker | C |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting; Grooving; Slitting; Slotting; Plunging |
| Minimum Corner Radius (Decimal Inch) | 0.0028 |
| Maximum Corner Radius (Decimal Inch) | 0.0067 |
| Corner Radius (mm) | 0.15 |
| Corner Radius (Decimal Inch) | 0.0059 |
| Coating Process | PVD |
| Overall Length (mm) | 9.30 |
| Overall Length (Decimal Inch) | 0.3661 |
| Series | CoroThread 266 |
| Rake Angle | 0 |
| Rake | Neutral |
| ISO Number | 254LG-22CC01-315 1135 |
| Manufacturers Catalog Number | 254LG-22CC01-315 1135 |
| Overall Width (mm) | 3.15 |
| Overall Width (Decimal Inch) | 0.1240 |
| Insert Thickness (Decimal Inch) | 0.2190 |
