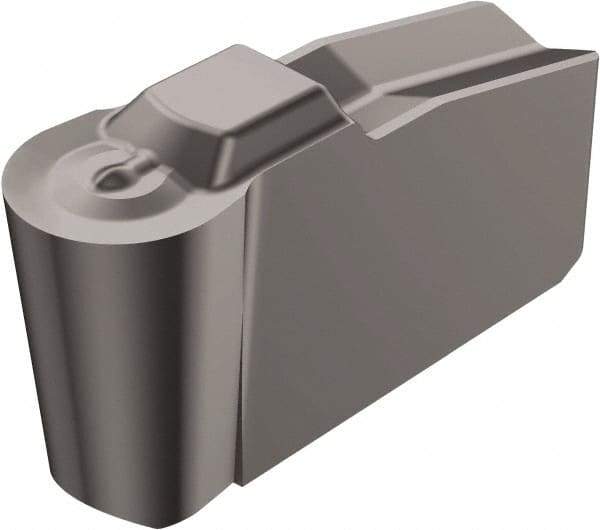

Sandvik Coromant - 40N151.2 4P Grade H13A, 5mm Cutting Width Carbide Grooving Insert - Neutral, Uncoated
Item #: 52078235
Brand: Sandvik Coromant
Model #: 5737224
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N151.2 |
| Insert Size | 40 |
| Material | Carbide |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1969 |
| Manufacturer's Grade | H13A |
| Coating | Uncoated |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 8.11 |
| Cutting Height (Decimal Inch) | 0.3191 |
| Relief Angle | 7 |
| Insert Seat Size | 40 |
| Chipbreaker | 4P |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting; Grooving; Slitting; Slotting; Plunging |
| Coating Process | Uncoated |
| Overall Length (mm) | 7.05 |
| Overall Length (Decimal Inch) | 0.2776 |
| Series | T-Max Q-Cut |
| Rake Angle | 0 |
| Rake | Neutral |
| ISO Number | N151.2-500-40-4P H13A |
| Manufacturers Catalog Number | N151.2-500-40-4P H13A |
| Overall Width (mm) | 5.00 |
| Overall Width (Decimal Inch) | 0.1969 |
| Insert Thickness (Decimal Inch) | 0.3191 |
