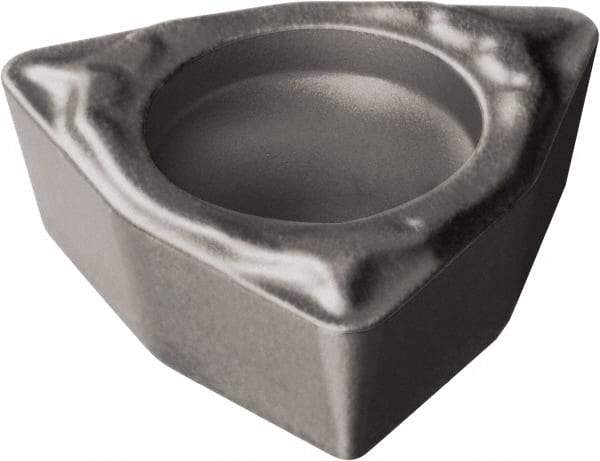

Sandvik Coromant - WPMT1.210 PF Grade 5015 Carbide Turning Insert - Uncoated, 80° Trigon, 5/32" Inscr Circle, 1/16" Thick, 0.2mm Corner Radius
Item #: 52074788
Brand: Sandvik Coromant
Model #: 5757193
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WPMT |
| Insert Size | 1.210 |
| Material | Carbide |
| Length (mm) | 2.41 |
| Length (Decimal Inch) | 0.0947 |
| Inscribed Circle (mm) | 3.81 |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Inscribed Circle (Inch) | 5/32 |
| Thickness (Inch) | 1/16 |
| Thickness (Decimal Inch) | 0.0625 |
| Thickness (mm) | 1.59 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | 5015 |
| Coating | Uncoated |
| Chip Breaker | PF |
| Insert Length (Decimal Inch) | 0.0947 |
| OverallLength (mm) | 2.61 |
| Overall Length (Decimal Inch) | 0.1026 |
| Hole Diameter (mm) | 2.20 |
| Hole Diameter (Decimal Inch) | 0.0866 |
| ISO Number | WPMT 02 01 02-PF 5015 |
| Relief Angle | 11 |
| Included Angle | 80 |
| Insert Holding Method | Screw |
| Shape | Trigon |
