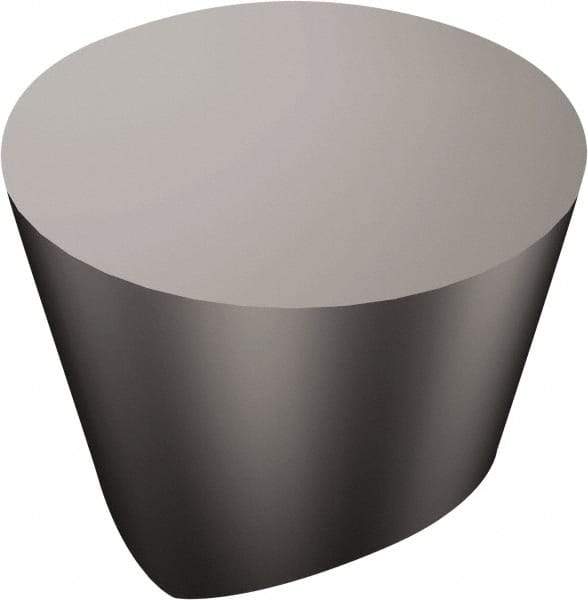

Sandvik Coromant - RPGX45 Grade 6060 Carbide Turning Insert - Uncoated, Round, 1/2" Inscr Circle, 5/16" Thick, 6.35mm Corner Radius
Item #: 52074341
Brand: Sandvik Coromant
Model #: 5741258
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RPGX |
| Insert Size | 45 |
| Material | Carbide |
| Length (mm) | 7.94 |
| Length (Inch) | 5/16 |
| Length (Decimal Inch) | 0.3125 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 5/16 |
| Thickness (Decimal Inch) | 0.3125 |
| Thickness (mm) | 7.94 |
| Corner Radius (mm) | 6.35 |
| Manufacturer's Grade | 6060 |
| Coating | Uncoated |
| Insert Length (Decimal Inch) | 0.3125 |
| OverallLength (mm) | 7.94 |
| Overall Length (Decimal Inch) | 0.3125 |
| ISO Number | RPGX120700E 6060 |
| Relief Angle | 11 |
| Insert Holding Method | Clamp |
| Shape | Round |
