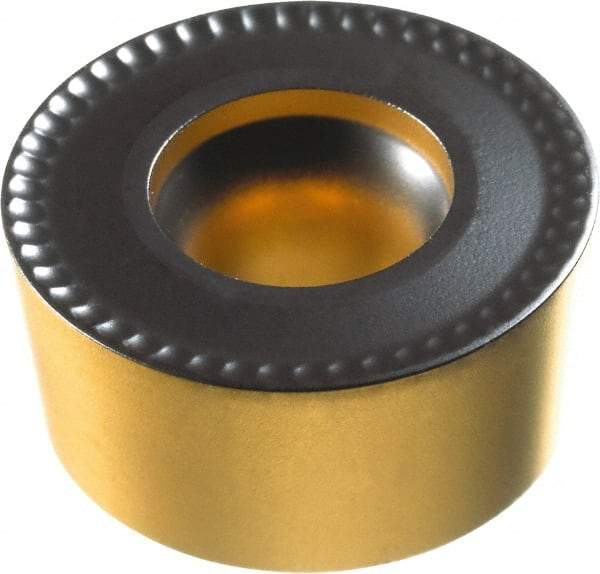

Sandvik Coromant - RCMT0803M0 Grade 4325 Carbide Turning Insert - TiCN/AI2O3/TiN Finish, Round, 8mm Inscr Circle, 1/8" Thick
Item #: 52073954
Brand: Sandvik Coromant
Model #: 6433943
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMT |
| Insert Size | 0803M0 |
| Material | Carbide |
| Length (mm) | 3.18 |
| Length (Inch) | 1/8 |
| Length (Decimal Inch) | 0.1250 |
| Inscribed Circle (mm) | 8.00 |
| Inscribed Circle (Decimal Inch) | 0.3150 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Thickness (mm) | 3.18 |
| Manufacturer's Grade | 4325 |
| Coating | TiCN/AI2O3/TiN |
| Insert Length (Decimal Inch) | 0.1250 |
| OverallLength (mm) | 3.18 |
| Overall Length (Decimal Inch) | 0.1250 |
| Hole Diameter (mm) | 3.40 |
| Hole Diameter (Decimal Inch) | 0.1339 |
| ISO Number | RCMT 08 03 M0 4325 |
| Relief Angle | 7 |
| Insert Holding Method | Screw |
| Shape | Round |
