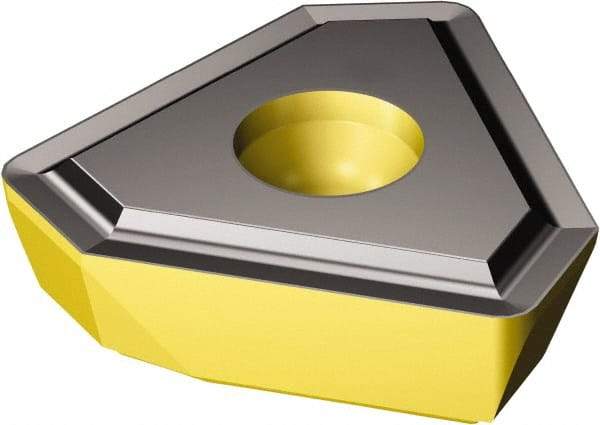

Sandvik Coromant - TPGX28 L Grade 4235 Carbide Indexable Drill Insert - TiCN/Al2O3/TiN Finish, Triangle, 17mm Inscribed Circle
Item #: 52071289
Brand: Sandvik Coromant
Model #: 6332213
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPGX |
| Insert Size | 28 |
| Material | Carbide |
| Manufacturer's Grade | 4235 |
| Inscribed Circle (mm) | 17.00 |
| Inscribed Circle (Decimal Inch) | 0.6693 |
| Thickness (mm) | 7.57 |
| Thickness (Decimal Inch) | 0.2980 |
| Corner Radius (mm) | 1.60 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Shape | Triangle |
| Width (Decimal Inch) | 0.6693 |
| Width (mm) | 17.00 |
| Length (mm) | 17.00 |
| Length (Decimal Inch) | 0.6693 |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Relief Angle | 11 |
| Included Angle | 11 |
| Coating | TiCN/Al2O3/TiN |
| Coating Process | MTCVD |
| Cutting Direction | Right Hand |
| Chipbreaker | L |
