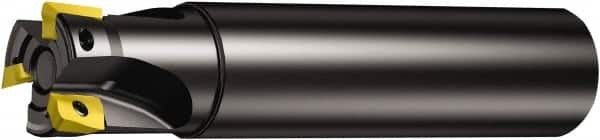

Sandvik Coromant - 63/64" Cut Diam, 15.7mm Max Depth of Cut, 63/64" Shank Diam, 120mm OAL, Indexable Square Shoulder Ramping End Mill - R390-17.. Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series CoroMill 390
Item #: 52070968
Brand: Sandvik Coromant
Model #: 5745430
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Cutting Diameter (Inch) | 63/64 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Inch) | 63/64 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Overall Length/Projection (mm) | 120.00 |
| Overall Length/Projection (Decimal Inch) | 4.7244 |
| Lead Angle | 90 |
| Series | CoroMill 390 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 15.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.6181 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | Ramping End Mill |
| Cutter Style | CoroMill 390 |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (mm) | 25.00 |
| Minimum Cutting Diameter (Decimal Inch) | 0.9843 |
| Head Length (mm) | 32.00 |
| Head Length (Decimal Inch) | 1.2598 |
| Weldon Flat | No |
| Insert Compatibility | R390-17.. |
| Shank Length (Decimal Inch) | 3.4646 |
| Maximum RPM | 30800 |
| Toolholder Material | Steel |
