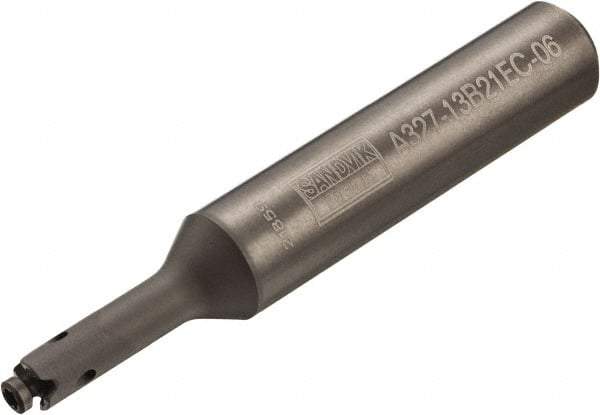

Sandvik Coromant - CoroMill 327 1/2" Weldon Shank Milling Tip Insert Holder & Shank - 38.51mm Projection, 0.2362" Neck Diam, 06 Neck Thread, 6mm Nose Diam, 96.5mm OAL, Steel A327-xxB Tool Holder
Item #: 52070950
Brand: Sandvik Coromant
Model #: 5722516
Exact Tooling IR#: 04
Features and Benefits
Weldon flats, also known as Weldon Shanks, are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | CoroMill 327 |
| Shank Type | Weldon Shank |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5 |
| Projection (mm) | 38.51 |
| Projection (Decimal Inch) | 1.5162 |
| Neck Diameter (Decimal Inch) | 0.2362 |
| Neck Thread Size | 06 |
| Nose Diameter (mm) | 6.00 |
| Nose Diameter (Decimal Inch) | 0.2362 |
| Toolholder Material | Steel |
| Overall Length (mm) | 96.50 |
| Overall Length (Decimal Inch) | 3.7992 |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | Yes |
| Head Length (Decimal Inch) | 1.5162 |
| Effective Length (mm) | 38.51 |
| Maximum Diameter (mm) | 6.00 |
| Maximum Diameter (Decimal Inch) | 0.2362 |
| Shank Material | Steel |
| Shank Shape | Round |
| Thread Size Connection to Tip | 06 |
| Toolholder Style | A327-xxB |
