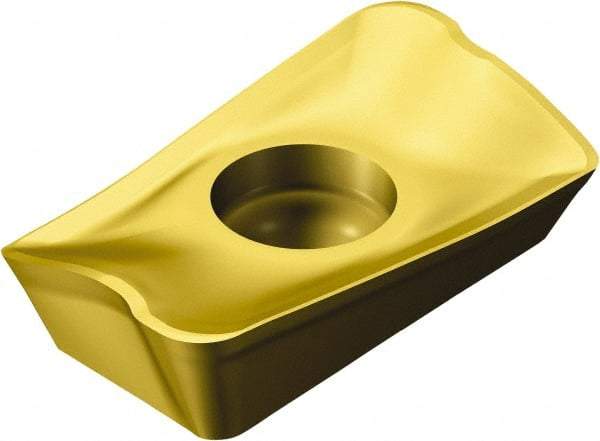

Sandvik Coromant - R390170464 PM Grade S40T Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 3/16" Thick, 9.6mm Inscribed Circle, 1/4" Corner Radius
Item #: 52070877
Brand: Sandvik Coromant
Model #: 5853524
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R390 |
| Insert Size | 170464 |
| Material | Carbide |
| Manufacturer's Grade | S40T |
| Coating | TiCN/Al2O3/TiN |
| Width (mm) | 9.60 |
| Width (Decimal Inch) | 0.3780 |
| Length (mm) | 15.70 |
| Inscribed Circle (mm) | 9.60 |
| Thickness (mm) | 4.76 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.2500 |
| Corner Radius (mm) | 6.35 |
| Hole Diameter (mm) | 4.10 |
| Hole Diameter (Decimal Inch) | 0.1614 |
| Coating Process | CVD |
| Included Angle | 0 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | PM |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | R390-17 04 64E-PM S40T |
