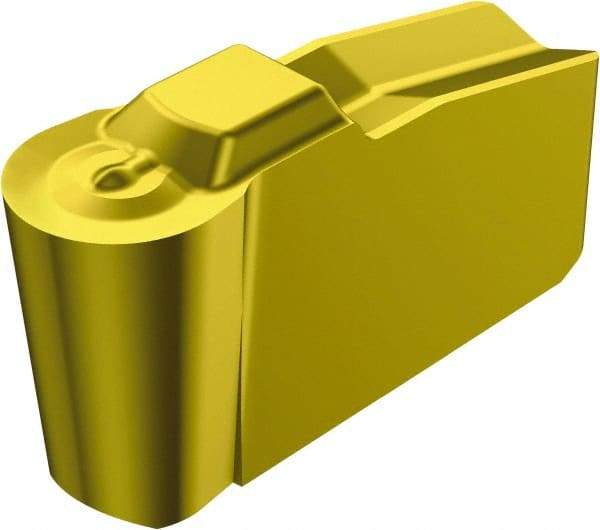

Sandvik Coromant - 50N151.2-A.. 4P 5.56mm Cutting Width Carbide Grooving Insert - 2.41mm Max Depth of Cut, Neutral, 2.78mm Corner Radius, TiCN/TiN Finish
Item #: 52069242
Brand: Sandvik Coromant
Model #: 5736983
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N151.2-A.. |
| Insert Size | 50 |
| Material | Carbide |
| Cutting Width (mm) | 5.56 |
| Cutting Width (Decimal Inch) | 0.2190 |
| Maximum Depth of Cut (mm) | 2.41 |
| Maximum Depth of Cut (Decimal Inch) | 0.0950 |
| Coating | TiCN/TiN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 8.11 |
| Cutting Height (Decimal Inch) | 0.3191 |
| Insert Seat Size | 50 |
| Chipbreaker | 4P |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Minimum Corner Radius (Decimal Inch) | 0.1095 |
| Corner Radius (mm) | 2.78 |
| Corner Radius (Decimal Inch) | 0.1095 |
| Coating Process | CVD |
| Series | T-Max Q-Cut |
| Rake | Positive |
| ISO Number | N151.2-A219-50-4P 235 |
| Manufacturers Catalog Number | N151.2-A219-50-4P 235 |
| Overall Width (Decimal Inch) | 0.2190 |
| Insert Thickness (Decimal Inch) | 0.3191 |
