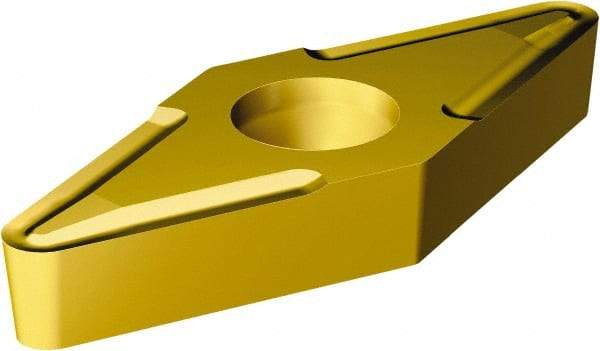

Sandvik Coromant - VBMT21.50 UF Grade 235 Carbide Turning Insert - TiCN/TiN Finish, 35° Diamond, 1/4" Inscr Circle, 3/32" Thick, 0.2mm Corner Radius
Item #: 52067121
Brand: Sandvik Coromant
Model #: 5755497
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VBMT |
| Insert Size | 21.50 |
| Material | Carbide |
| Length (mm) | 10.87 |
| Length (Decimal Inch) | 0.4280 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Thickness (mm) | 2.38 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | 235 |
| Coating | TiCN/TiN |
| Chip Breaker | UF |
| Insert Length (Decimal Inch) | 0.4280 |
| OverallLength (mm) | 11.07 |
| Overall Length (Decimal Inch) | 0.4359 |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| ISO Number | VBMT 11 02 02-UF 235 |
| Relief Angle | 5 |
| Included Angle | 35 |
| Insert Holding Method | Screw |
| Shape | Diamond |
