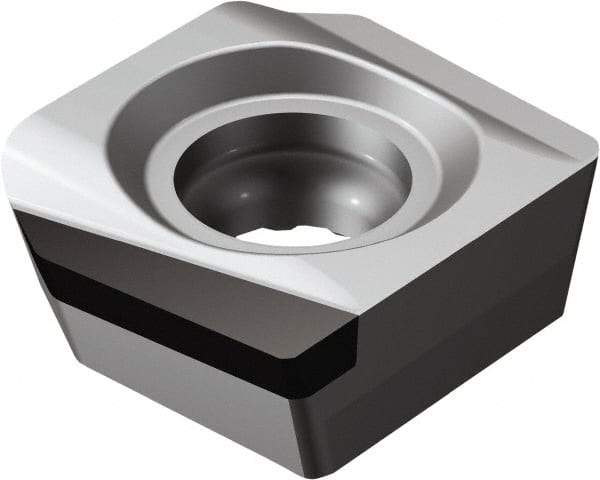

Sandvik Coromant - R5901105 NW Grade CD10 Diamond Tipped Milling Insert - Uncoated, 5mm Thick, 11.5mm Inscribed Circle
Item #: 52066354
Brand: Sandvik Coromant
Model #: 5747639
Exact Tooling IR#: 04
Features and Benefits
Diamond tips are one of the hardest cutting materials. It is brazed onto a carbide insert. Commonly used at high cutting speeds on non-ferrous metals.
| Product Specifications | |
|---|---|
| Insert Style | R590 |
| Insert Size | 1105 |
| Material | Diamond Tipped |
| Manufacturer's Grade | CD10 |
| Coating | Uncoated |
| Width (mm) | 11.50 |
| Width (Decimal Inch) | 0.4528 |
| Length (mm) | 3.00 |
| Inscribed Circle (mm) | 11.50 |
| Thickness (mm) | 5.00 |
| Thickness (Decimal Inch) | 0.1969 |
| Hole Diameter (mm) | 4.60 |
| Hole Diameter (Decimal Inch) | 0.1811 |
| Rake Angle | 20 |
| Rake | Positive |
| Coating Process | PCD |
| Included Angle | 0 |
| Shape | Proprietary |
| Insert Hand | Right Hand |
| Chipbreaker | NW |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | R590-1105H-RC2-NW CD10 |
