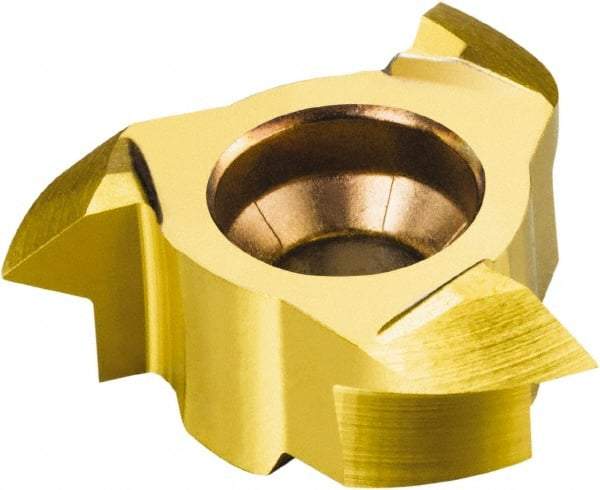

Sandvik Coromant - 327 TH Grade 1025 Carbide Thread Milling Tip Insert - TiCN/TiN Finish, 6 Flutes, 21.7mm Cutting Diam, 1.2mm Depth of Cut, 5.95mm Extension, 0° Helix
Item #: 52065851
Brand: Sandvik Coromant
Model #: 5758647
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiCN/TiN is a multi-layered coating designed to increase tool life. It is commonly used at high cutting speeds for smoothing and finishing of the workpiece.
| Product Specifications | |
|---|---|
| Series | CoroMill 327 |
| Milling Tip Style | 327 |
| Milling Tip Type | Thread Mill |
| Material | Carbide |
| Cutting Diameter (mm) | 21.70 |
| Cutting Diameter (Decimal Inch) | 0.8543 |
| Manufacturer's Grade | 1025 |
| Depth of Cut (mm) | 1.20 |
| Number of Flutes | 6 |
| Coating | TiCN/TiN |
| Coating Process | PVD |
| Chipbreaker | TH |
| Extension From Holder (mm) | 5.95 |
| Extension From Holder (Decimal Inch) | 0.2343 |
| Thread Size | VP60 |
| Helix Angle | 0 |
| Style | 327..VM-TH |
| Pitch (mm) | 12.00 |
| Threads Per Inch | 0.07874 |
| Manufacturers Catalog Number | 327R12-22 100VM-THM 1025 |
