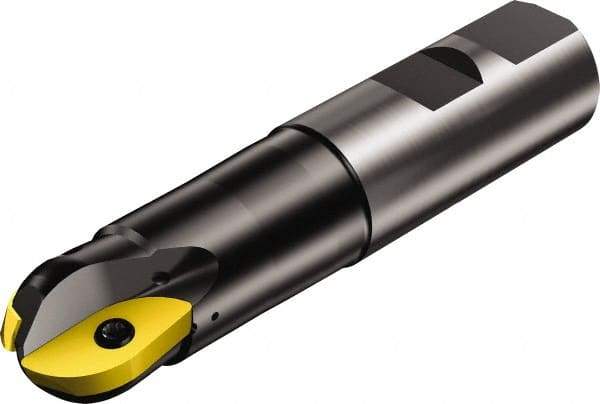

Sandvik Coromant - 1/2" Cut Diam, 11.2776mm Max Depth of Cut, 3/4" Shank Diam, 89.7mm OAL, Indexable Ball Nose End Mill - 20.9mm Head Length, Weldon Flat Shank, RA216..Mxx Toolholder, RA216-1302 Insert
Item #: 52065174
Brand: Sandvik Coromant
Model #: 5739111
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1/2 |
| Cutting Diameter (Decimal Inch) | 0.5000 |
| Maximum Depth of Cut (mm) | 11.28 |
| Maximum Depth of Cut (Decimal Inch) | 0.4440 |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | RA216-1302 |
| Toolholder Style | RA216..Mxx |
| Series | CoroMill 216 |
| Overall Length (mm) | 89.70 |
| Overall Length (Decimal Inch) | 3.5315 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | Yes |
| Number of Flutes | 2 |
| Head Length (mm) | 20.90 |
| Head Length (Decimal Inch) | 0.8228 |
| Number of Side Inserts Used on Toolholder | 0 |
| Maximum RPM | 21000 |
| Projection (Inch) | 1-1/2 |
| Projection (Decimal Inch) | 1.5000 |
