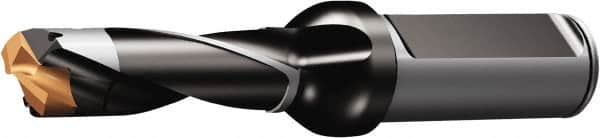

Sandvik Coromant - 25 to 25.99mm Diam, 3xD, 81.9mm Max Depth, 1-1/4" Shank Diam, 107.09mm Flute, 171mm OAL, Replaceable Tip Drill - 870-2590-25-PM Insert, 25 Seat Size, 870...LX-3 Toolholder, Series CoroDrill 870
Item #: 52065158
Brand: Sandvik Coromant
Model #: 6239879
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | CoroDrill 870 |
| Minimum Drill Diameter (mm) | 25.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.9843 |
| Maximum Drill Diameter (mm) | 25.99 |
| Maximum Drill Diameter (Decimal Inch) | 1.0232 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 3.2244 |
| Maximum Drill Depth (mm) | 81.90 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Style | 870-2590-25-PM |
| Insert Seat Size | 25 |
| Toolholder Style | 870...LX-3 |
| Through Coolant | Through Coolant |
| Shank Type | Straight |
| Tip Length (mm) | 3.91 |
| Tip Length (Decimal Inch) | 0.1539 |
| Flute Length (mm) | 107.09 |
| Flute Length (Decimal Inch) | 4.2161 |
| Body Length (mm) | 85.00 |
| Body Length (Decimal Inch) | 3.3465 |
| Overall Length (mm) | 171.00 |
| Overall Length (Decimal Inch) | 6.7323 |
| Toolholder Material | Steel |
| Shank Length (mm) | 60.00 |
| Shank Length (Decimal Inch) | 2.3622 |
