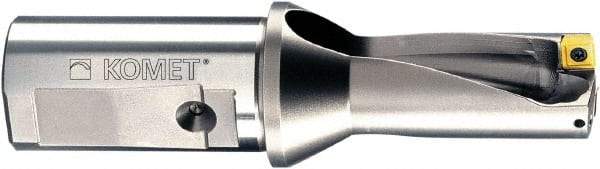

Komet - 48mm Max Drill Depth, 3xD, 15.5mm Diam, Indexable Insert Drill - 2 Inserts, 20mm Shank Diam, Straight Shank
Item #: 51649952
Brand: Komet
Model #: U1161550
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | U11 |
| Drill Diameter (mm) | 15.50 |
| Drill Diameter (Decimal Inch) | 0.6102 |
| Maximum Drill Depth (mm) | 48.00 |
| Maximum Drill Depth (Decimal Inch) | 1.8898 |
| Shank Type | Straight |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.6299 |
| Maximum Drill Diameter (mm) | 16.00 |
| Overall Length/Projection (mm) | 122.00 |
| Overall Length/Projection (Decimal Inch) | 4.8031 |
| Insert Compatibility | SOEX 050204 |
| Body Length (Decimal Inch) | 2.8346 |
| Body Length (mm) | 72.00 |
| Shank Length (mm) | 50.00 |
| Shank Length (Decimal Inch) | 1.9685 |
| Series | KUB Quatron |
