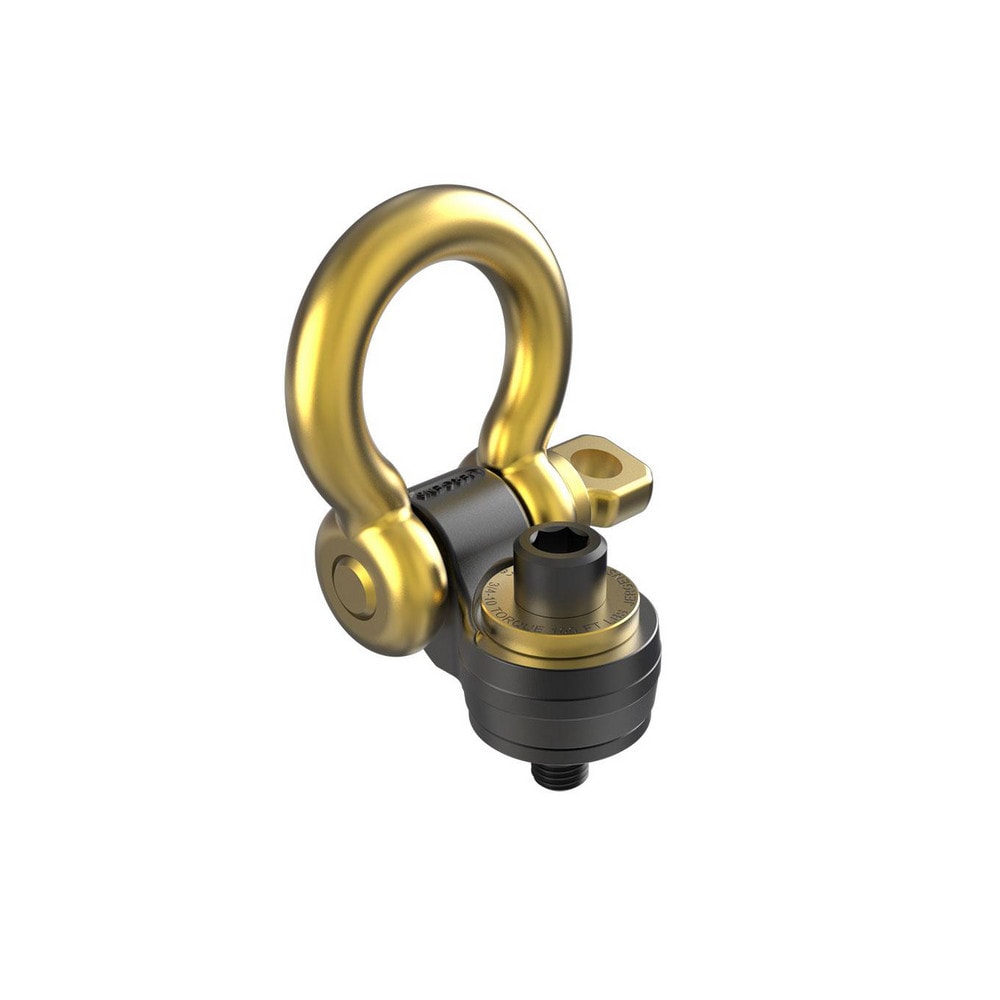

Flip-Flop Hoist Ring: Screw-On, 2100 kg Capacity
Item #: 79050035
Brand: Jergens
Model #: 47923
Product Specifications
| Hoist Ring Type | Flip-Flop |
| Load Capacity (kg) | 2100 |
| Thread Size | M20 |
| Radius (mm) | 33.30 |
| Radius (Decimal Inch) | 1.3110 |
| Thread Length (Inch) | 1-1/4 |
| Thread Length (Decimal Inch) | 1.2200 |
| Ring Height (mm) | 117.40 |
| Ring Height (Decimal Inch) | 4.6220 |
| Material | Alloy Steel |
| Ring Thickness (mm) | 22.20 |
| Ring Thickness | 0.8740 |
| Overall Length (mm) | 197.9000 |
| Overall Length (Decimal Inch) | 7.7900 |
| Ring External Width (Inch) | 4.3750 |
| Ring External Width (mm) | 111.00 |
| Ring Internal Width (mm) | 66.60 |
| Ring Internal Width (Inch) | 2.6220 |
| Torque | 135.000 |
| Finish | Black Oxide |
| Material Grade | Alloy Steel |
| Mount Type | Screw-On |
| Number Of Mounting Holes | 1.000 |
| Standards | ASME B30.26 and MIL-STD-209 |
| Ring Opening (Decimal Inch) | 2.62 |
| Flange Diameter (Decimal Inch) | 2.32 |
| Ring Outside Diameter (Decimal Inch) | 2.1875 |
| Hex Size (mm) | 17.000 |
| Ring Width (mm) | 111.00 |
| UNSPSC Code | 24101600 |
| Pin Length (Decimal Inch) | 3.7500 |
| Ring Width (Inch) | 4-3/8 |
| Ring Width (Decimal Inch) | 4.3750 |
| Clevis Height (mm) | 22 |
| Head/Holder Diameter (Fractional Inch) | 1-3/16 |
| Clevis Width (Inch) | 5-5/8 |
| Mounting Surface Diameter (mm) | 20.00 |
| Flange Diameter (mm) | 59.00 |
| Clevis Height (Inch) | 7/8 |
| Pin Diameter (mm) | 22.2000 |
| Clevis Width (mm) | 143 |
| Ring Opening (mm) | 66.60 |
| Country of Origin | UNITED STATES |
