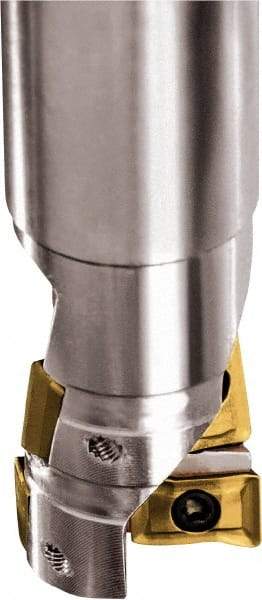

Kyocera - 1" Cut Diam, 0.295" Max Depth of Cut, 1" Shank Diam, 5.486" OAL, Indexable Square Shoulder End Mill - GOMT 13T308ER-D, JOMT 13T308ER-D Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant
Item #: 51562171
Brand: Kyocera
Model #: 8818905
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.40 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length/Projection (Decimal Inch) | 5.4860 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.2950 |
| Number of Cutter Inserts | 4 |
| End Mill Type | End Mill |
| Head Length (Decimal Inch) | 1.1020 |
| Insert Compatibility | GOMT 13T308ER-D; JOMT 13T308ER-D |
| Shank Length (Decimal Inch) | 3.9370 |
