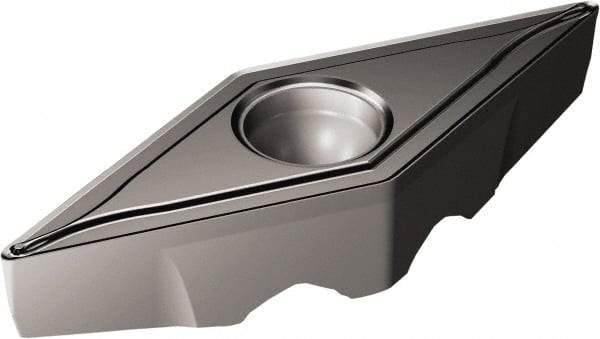

Sandvik Coromant - TRVB1304 F Grade 1105 Carbide Turning Insert - TiAlN Finish, 35° Diamond, 8mm Inscr Circle, 4.525mm Thick, 1/64" Corner Radius
Item #: 51556058
Brand: Sandvik Coromant
Model #: 5755416
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TRVB |
| Insert Size | 1304 |
| Material | Carbide |
| Length (mm) | 12.60 |
| Length (Decimal Inch) | 0.4961 |
| Inscribed Circle (mm) | 8.00 |
| Inscribed Circle (Decimal Inch) | 0.3150 |
| Thickness (Decimal Inch) | 0.1781 |
| Thickness (mm) | 4.53 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | 1105 |
| Coating | TiAlN |
| Chip Breaker | F |
| Insert Length (Decimal Inch) | 0.4961 |
| OverallLength (mm) | 13.00 |
| Overall Length (Decimal Inch) | 0.5118 |
| Hole Diameter (mm) | 3.40 |
| Hole Diameter (Decimal Inch) | 0.1339 |
| ISO Number | TR-VB1304-F 1105 |
| Relief Angle | 5 |
| Included Angle | 35 |
| Insert Holding Method | Screw |
| Shape | Diamond |
