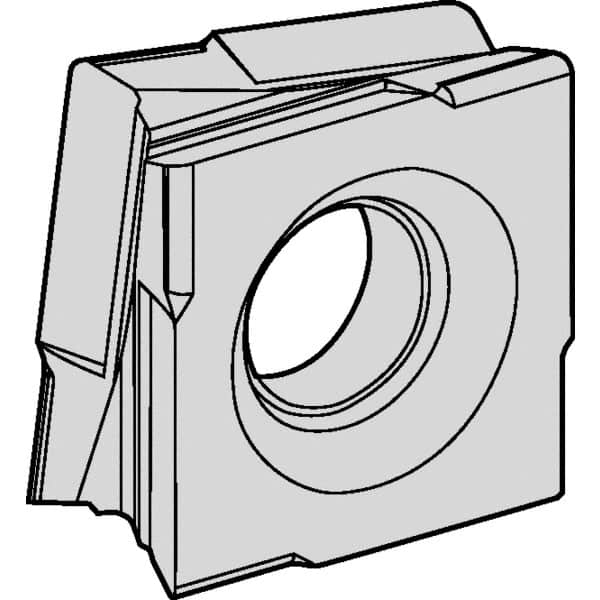

Kennametal - C8FIX150603 MP Grade KCP10 Carbide Turning Insert - TiCN/Al2O3 Finish, Irregular, 6.6mm Thick, 0.0118" Corner Radius
Item #: 51489755
Brand: Kennametal
Model #: 4051216
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | C8FIX |
| Insert Size | 150603 |
| Material | Carbide |
| Length (mm) | 9.30 |
| Length (Decimal Inch) | 0.3660 |
| Thickness (Decimal Inch) | 0.2598 |
| Thickness (mm) | 6.60 |
| Corner Radius (Decimal Inch) | 0.0118 |
| Manufacturer's Grade | KCP10 |
| Coating | TiCN/Al2O3 |
| Chip Breaker | MP |
| Hole Diameter (mm) | 6.10 |
| Hole Diameter (Decimal Inch) | 0.2400 |
| ISO Number | C8FIX150603RMP |
| Rake | Positive |
| Rake Angle | 18 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Series | Fix-Perfect |
| Insert Holding Method | Pin |
| Shape | Irregular |
